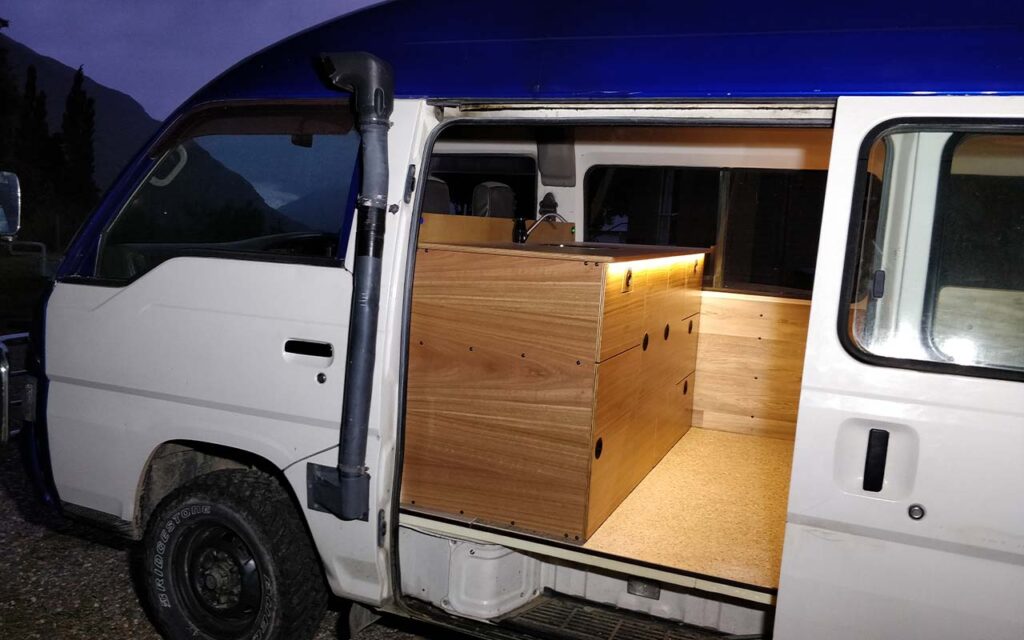

1998 Nissan Caravan interior

This beast of an off road van started out as a passenger carrier for a local tour operator. we brought it to use as a shell to prototype our design in.

We fitted a “low spec” version of our interior meaning to say that we left out some fancy things like fridge, water pump and solar system. When we sold it though, the lucky new owner was keen to upgrade to the full level of features we offer and that’s how we like to see our interiors!

And so we fitted the Engle draw fridge, The zero to hero plumbing kit, a custom solar system and a huge epever power inverter to meet the customers requirements.

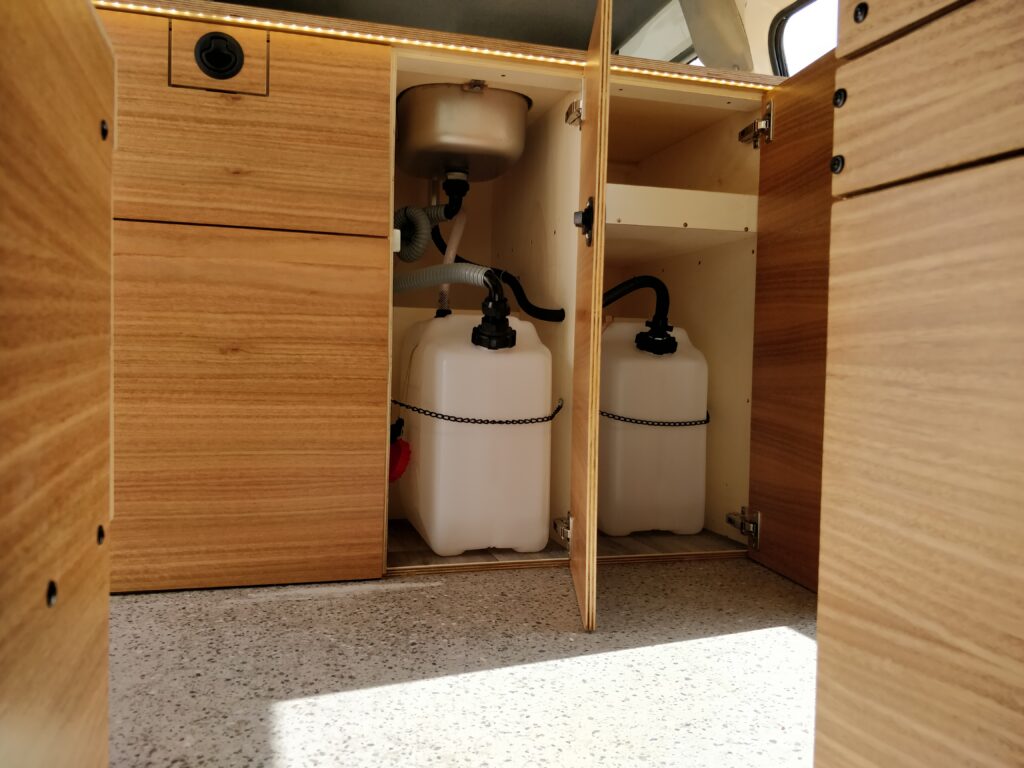

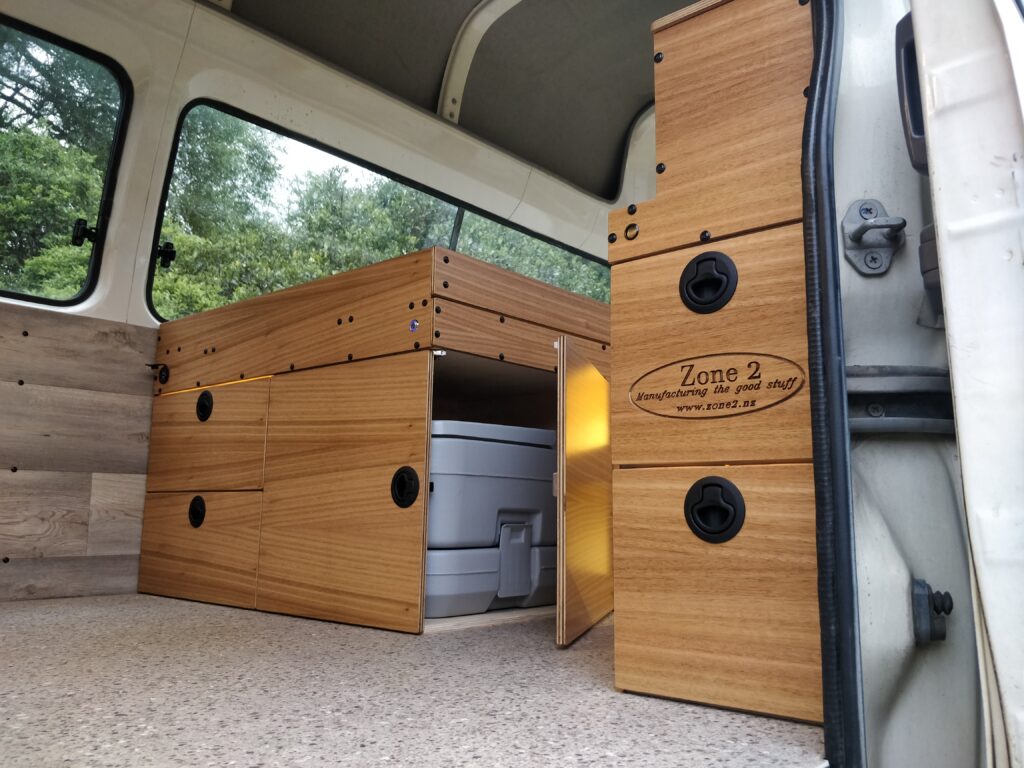

Kitchen As it was when first sold “low spec” with pump tap, and no fridge or solar

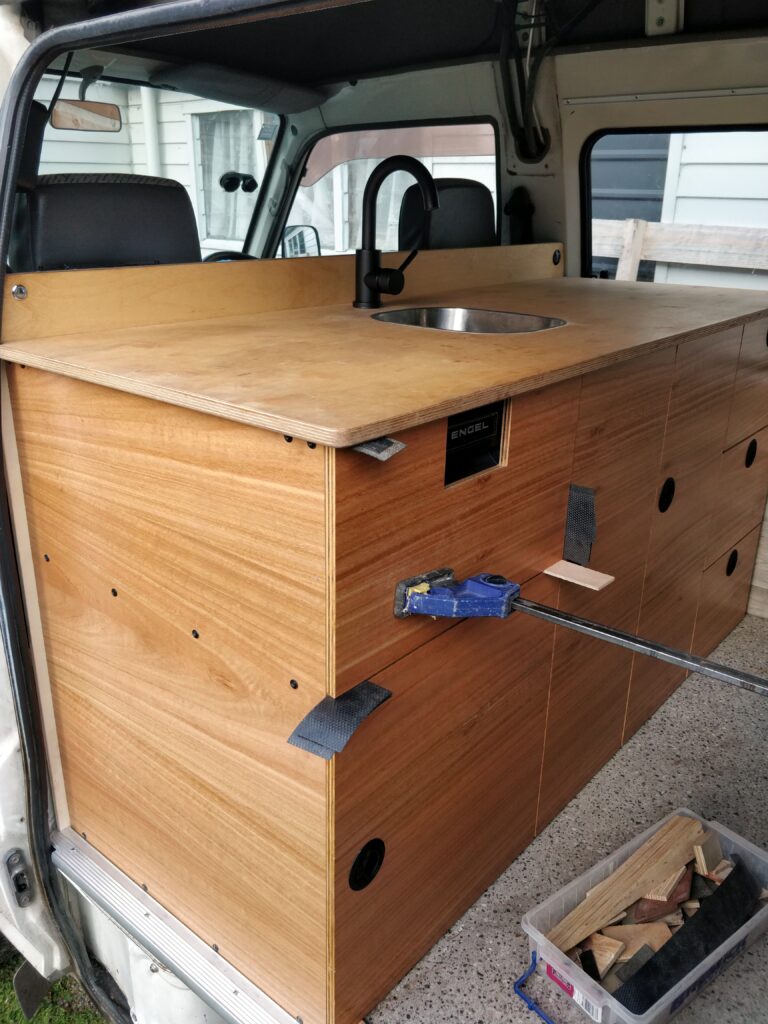

After the customer came back for the upgrades, here we can the front getting mounted to the Engle Drawer Fridge and the sexy new Tap that works just like a household one.

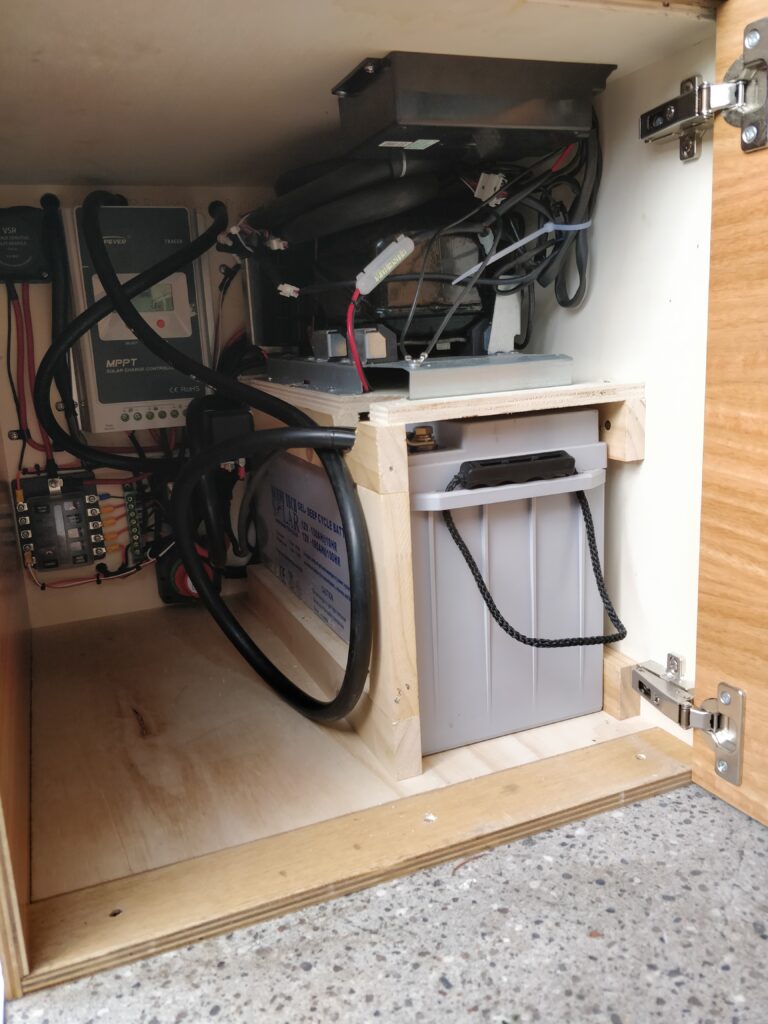

Tucked away bellow the fridge we can see the remotely mounted fridge compressor, Leisure battery, and solar system. Those fat cables are capable of safely handling the massive 166 amps required by the 1500W power inverter at max load.

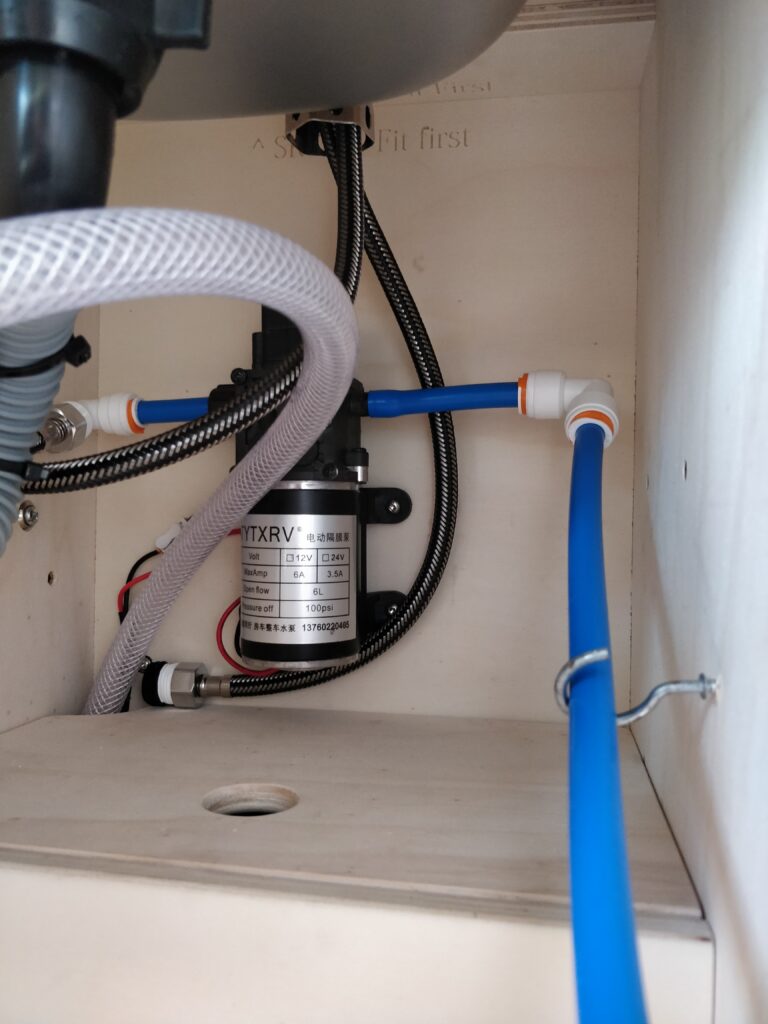

Water pump & plumbing upgrade fitted

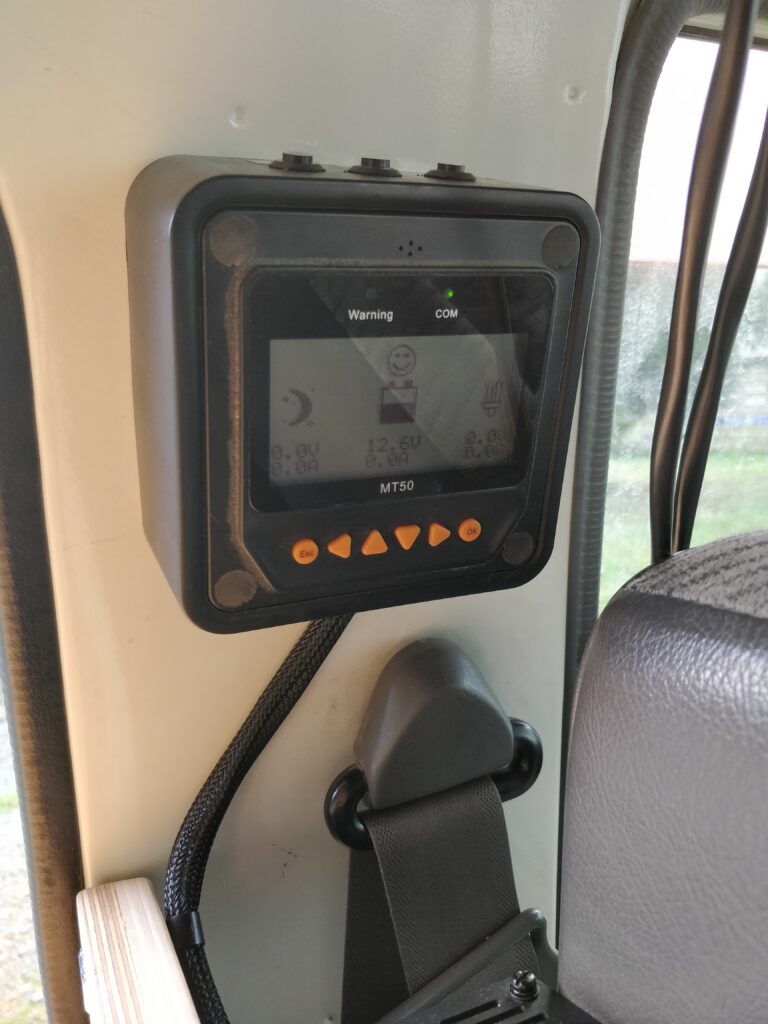

Solar control interface with Switches for water pump, VSR & power inverter control relay fitted on top.

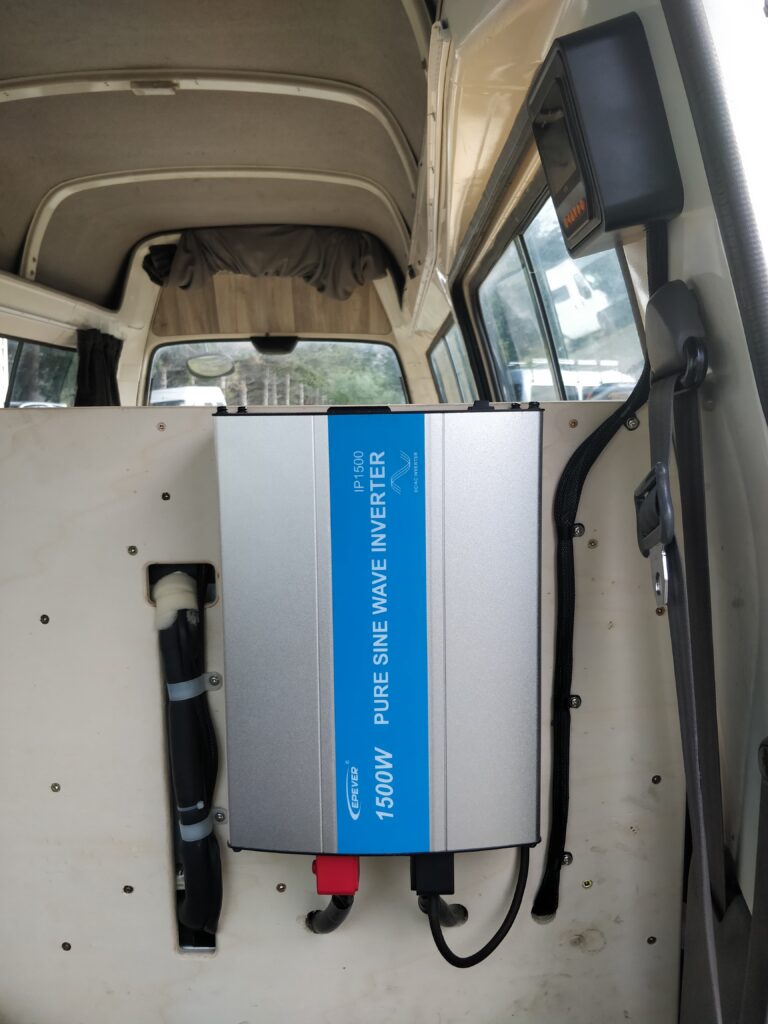

This weapon of a power inverter can deliver 1500 watts of pure 230V sign wave and handle a surge of 2400W! That’s peaking at 235 amps @ 12 volts!
We use big cable for this guy!
