25 Liter small pump BASIC van plumbing kit. No tap, no sink

Description

This kit is for people wanting to supply their own sink and tap.

It comes with every fitting needed to suck water
from the tank, connect to your tap & your sink and down into the waste tank.
An all in one, complete & hassle free system, that can be successfully installed by anyone and
is proven to work flawlessly. Save yourself many trips to the hardware store & the headache of
trying to find compatible components to connect your pumps, tanks & Taps. Our Kits use high
quality, reusable, swivel-able, tool free, push fit fittings so you can edit your plumbing circuit any
time without the need to purchase new parts or have specialized tools on hand. This makes
adding new circuits to your system at a later date easy, no crimping required!

This Kit features:

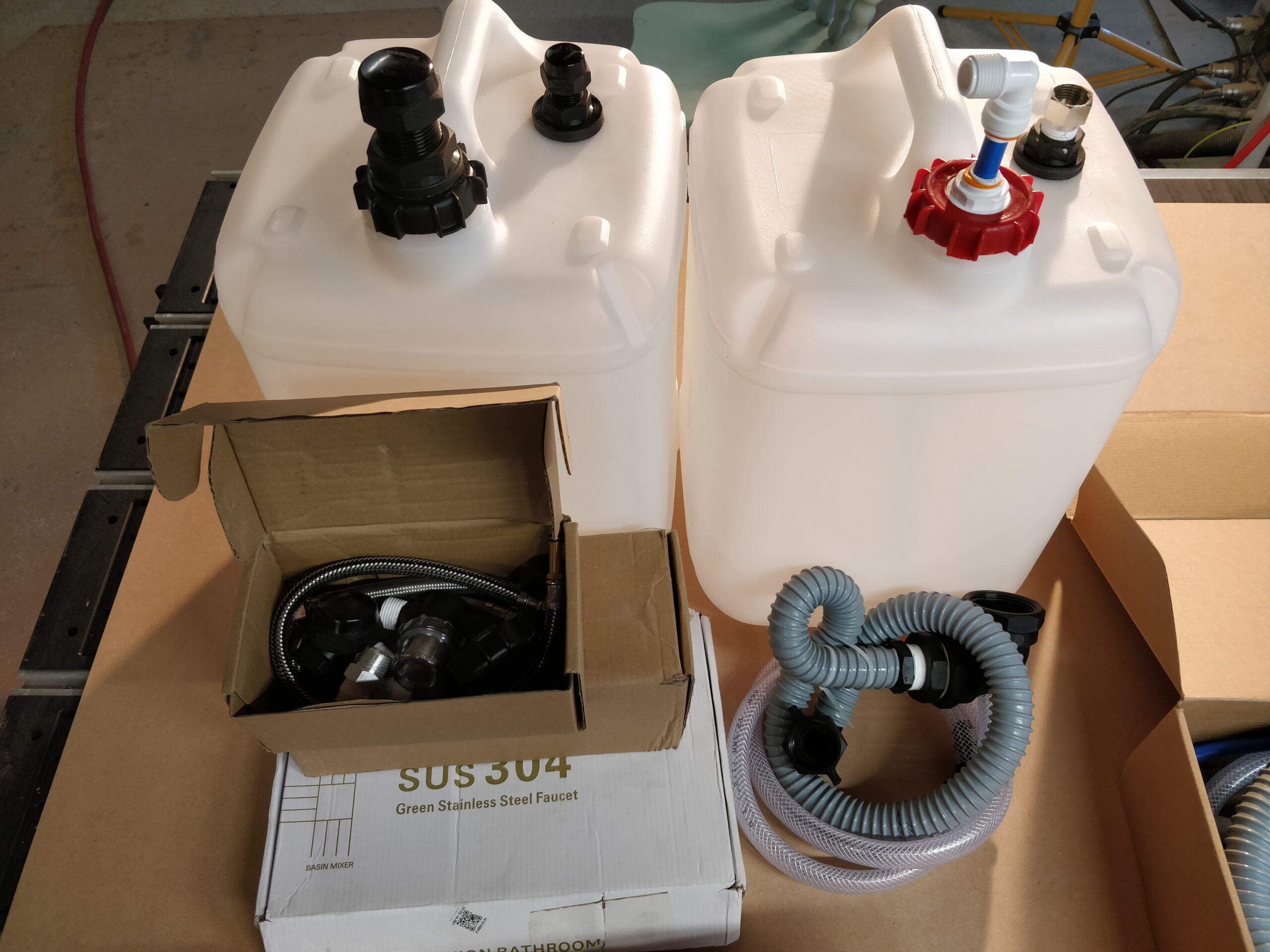

•  25L fresh and grey water tank capacity. This meets the self containment requirements
  for two people.
• Opaque Tanks reduce the likelihood of mold growing inside the tanks.
• Tanks are made In New Zealand from food safe HDPE plastic.
• 12 Volt high quality self priming (up to 3 meters) Electric water pump.
•  6 Liters per minute volume of water (Open flow)
•  The highly efficient water pump only uses 3.5 Amps when running (42 Watts)
•  Max current draw is 6 Amps for a split second on startup.
•  The water Pump has a massive 100 PSI pressure rating but we have reduced the
  pressure shut off switch down to 30 PSI to increase system longevity by using a softer
  spring in the pressure switch housing.
• This pump is tough, over built and is barely breaking a sweat. Something we have
  noticed lacking when you look at affordable pumps in the New Zealand marketplace!
• Pump is fitted with a pressure sensitive on/off switch meaning it will turn on when you
  open the tap and turn off when you close the tap. Just like in a normal house!
• 1 meter of braided flexible fresh water pipe, grey water pipe and grey water breather tube all
  included.
• Comes with extra lids for containing your fluids whilst emptying and refilling the tanks
  (when they are disconnected from the pipes).
• Superior use of a non-return valve eliminates spillage, tubing & connections at the fresh
  water tank breather.
• Custom modified NZ made Hansen tank fittings ensure a reliable, strong & water tight,
  25mm diameter waist connection to your tank that is detachable for easy emptying.
• Kit includes spare Nut & Hose Tail rubber washers

Benefits of this kit:

• You spend some money, the parts arrive at your doorstep & then you have fun putting it
  together like Lego.
• It Works perfectly, It is reliable, It is high Quality, It can be expanded on.
• No specialized tools or experience required
• After sales service! If you have brought one of our kits and have any questions or need
  some tips on installation then we are always here to help you.
•  This Kit Meets and exceeds the requirements of NZS 5465:2001-Self containment of
  motor Caravans and Caravans Fresh and grey water system for two people.

Note:

For self containment certificate inspections, solar installations or full interior build &
install, in the southern lakes & southland regions, Please contact us. We can help!
